- Description

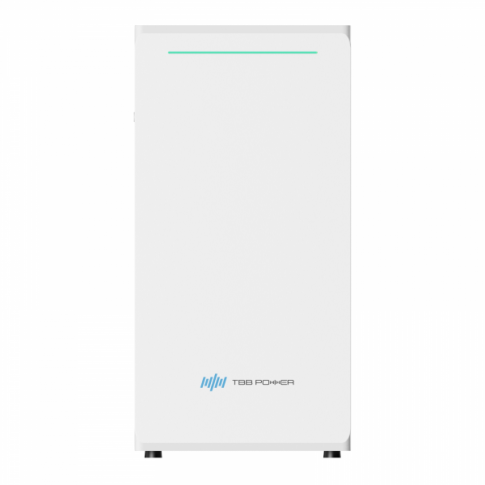

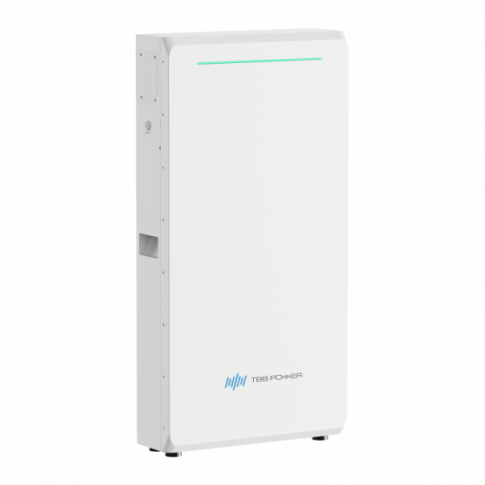

The PS10, or Power Stack 10, is TBB Power's newest 48V lithium battery pack, engineered to deliver high energy density and outstanding performance for both residential and commercial applications. With its compact design and extended cycle life, this battery pack is an excellent solution for your energy storage needs.
Key Features:
- High Capacity and Power Output: Designed to provide significant capacity and high power output, making it suitable for a wide range of energy-intensive applications.
- Safe and Reliable: Utilizes lithium iron phosphate (LiFePO4) cells, recognized for their safety and high energy density, ensuring dependable performance over time.
- Modular Design: Supports up to 16 units in parallel, allowing for flexible capacity expansion to accommodate various energy demands.
- Space-Saving Installation: Compatible with both floor-mounted and wall-mounted setups, optimizing available space and enhancing convenience.
- Cost-Effective Integration: The high integration design minimizes installation costs and simplifies wiring processes for easier setup.
- User-Friendly Features: Each battery pack includes a mounting bracket for straightforward installation and handles on both sides for easy transportation.
- Built-In Safety Mechanisms: Equipped with a built-in circuit breaker for over-current protection, ensuring safe operation.
- IP65 Protection Rating: Suitable for both indoor and outdoor use, providing durability and reliability in diverse environments.
- Compatibility: Offers excellent compatibility with mainstream inverters, supporting CAN and RS485 communication for seamless integration.
- Real-Time Monitoring: Monitor battery status remotely through the NOVA APP & Web, and locally via the optional TBB-E4 LCD Monitor (sold separately), keeping you informed about your energy usage.
Applications:
The Power Stack 10 is perfect for a variety of residential and commercial applications. Its advanced features make it ideal for energy storage systems requiring high capacity and flexibility, including solar power systems, backup power solutions, and off-grid setups.
This battery pack is designed for long-lasting performance, emphasizing safety, efficiency, and user convenience. It comes securely packaged with a user manual and installation accessories.
Specifications:
- Nominal Voltage: 48V
- Operating Voltage Range: 42 – 54.75V
- Nominal Capacity: 210Ah
- Maximum Power Output: 10.08kW
- Peak Current: 240A
- Maximum Charge and Discharge Current: 210A
- Recommended Charge and Discharge Current: 52.5A
- Self-Discharge Rate: Less than 3% per month
- Cycle Life: 6,000 cycles (at 90% Depth of Discharge and 70% State of Health) at 25°C, 0.5C
- Operating Discharge Temperature: Ranges from -20°C to +55°C
- Operating Charge Temperature: Ranges from 0°C to +55°C
- Altitude Limit: Less than 2,000 meters
- Humidity Tolerance: 95% (without condensation)
- Protection Rating: IP65
- Dimensions: 484 x 968 x 195 mm
- Weight: 94.0 kg
