- Description

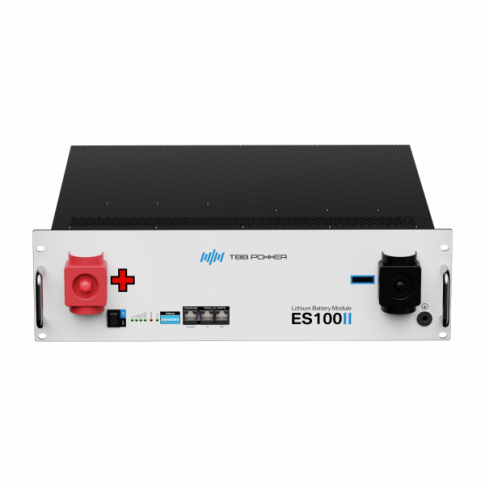

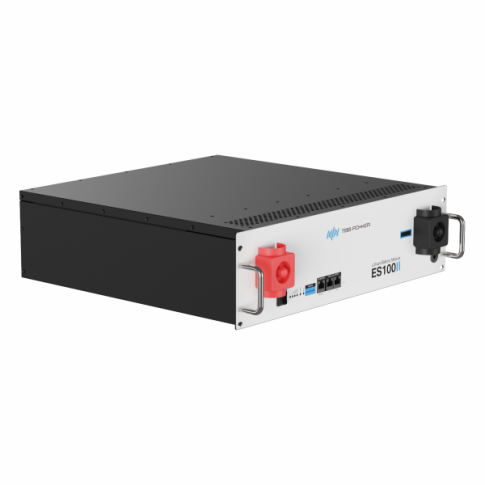

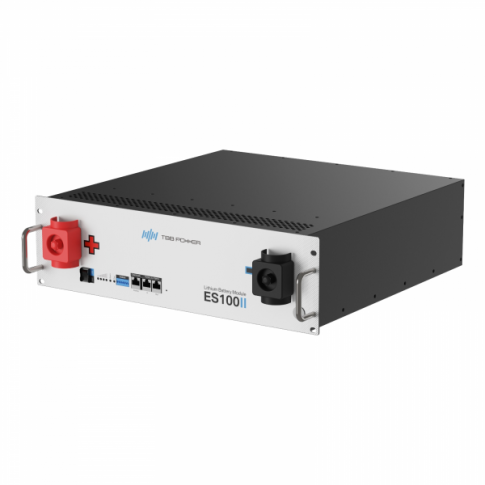

The ES100 II is a cutting-edge 48V 105Ah lithium battery module from TBB Renewable, specifically designed for backup power systems, solar off-grid applications, and residential energy storage. This module boasts high energy density and a sleek, compact design, ensuring safe and efficient energy storage with an extended cycling life. With its advanced technology, the ES100 II streamlines installation and boosts overall system performance.
Key Features:
- Safe and Reliable: Utilizes lithium iron phosphate (LiFePO4) cells, offering superior safety and longevity compared to traditional battery technologies.
- Scalable Capacity: Supports the connection of up to 32 modules in parallel, allowing for customizable energy solutions to meet diverse demands.
- Easy Installation: Automatically assigns communication addresses to slave modules, making the parallel connection process simple and efficient.
- High Performance: Capable of short-duration high-current charge and discharge with an impressive 90% depth of discharge (DoD) and a lifespan of up to 6,000 cycles.
- Versatile Compatibility: Features external CAN communication and an RS485 communication port for seamless integration with leading inverter brands, including TBB inverters.

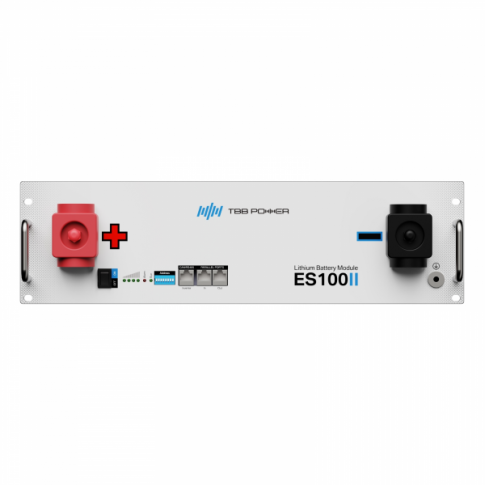

- User-Friendly Design: Equipped with universal positive and negative terminals for easy installation and includes a standard 300A parallel bus bar.
- Durable Protection: The modules come with IP20 protection as standard and can be easily mounted to a bracket or rack cabinet (both sold separately). The cabinet meets IP65 protection standards, ensuring reliability in various environments.
- Intelligent Management System: Each battery pack includes an advanced Battery Management System (BMS) for effective monitoring and management of modules.
- Convenient Handling: Designed with practical pull bars for enhanced ease of operation.
Applications:
The ES100 II is perfect for backup power systems, solar energy storage, and off-grid applications. Its advanced features make it an excellent choice for residential energy solutions, emergency power storage, and integration with renewable energy sources.
The expected service life of the ES100 II exceeds 6,000 cycles, ensuring long-lasting performance for your energy needs. The battery module is securely packaged and includes a user manual along with the necessary installation hardware.
Battery Specifications:
- Nominal Voltage: 48V
- Operating Voltage Range: 42 – 54.75V
- Nominal Capacity: 105Ah
- Peak Current: 120A
- Maximum Charge and Discharge Current: 105A
- Recommended Charge and Discharge Current: 52.5A
- Self-Discharge Rate: Less than 3% per month
- Cycle Life: 6,000 cycles (at 90% Depth of Discharge and 70% State of Health) at 25°C, 0.5C
- Operating Discharge Temperature: From -20°C to +55°C
- Operating Charge Temperature: From 0°C to +55°C
- Altitude Limit: Less than 2,000 meters
- Humidity Tolerance: 95% (without condensation)
- Protection Rating: IP20
- Dimensions: 482.6 x 133.4 x 450 mm
- Weight: 40.0 kg
