- Description

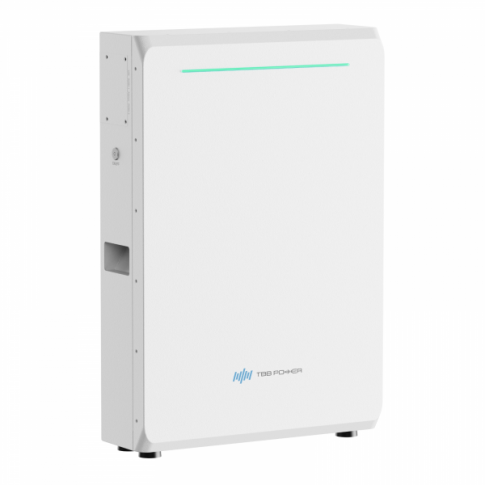

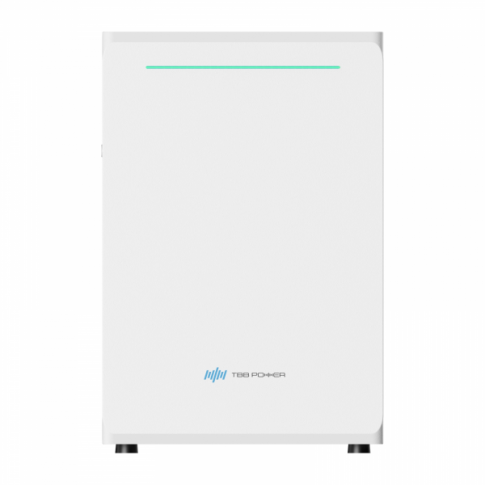

The PS5, or Power Stack 5, is TBB Power's newest 48V lithium battery pack, designed to deliver high energy density and outstanding performance for both residential and commercial applications. With its compact design and long cycle life, this battery pack is an excellent solution for your energy storage needs.
Key Features:
- High Capacity and Power Output: Engineered to provide significant capacity and high power output, making it suitable for various energy-intensive applications.
- Safe and Reliable: Utilizes lithium iron phosphate (LiFePO4) cells, renowned for their safety and high energy density, ensuring consistent performance over time.
- Modular Design: Supports up to 32 units in parallel, allowing for flexible capacity expansion to accommodate diverse energy demands.
- Space-Saving Installation: Compatible with both floor-mounted and wall-mounted setups, optimizing available space and enhancing convenience.
- Cost-Effective Integration: The high integration design minimizes installation costs and simplifies wiring processes for easier setup.
- User-Friendly Features: Each battery pack includes a mounting bracket for straightforward installation and handles on both sides for easy transportation.
- Built-In Safety Mechanisms: Equipped with a built-in circuit breaker for over-current protection, ensuring safe operation.
- IP65 Protection Rating: Suitable for both indoor and outdoor use, offering durability and reliability in various environments.
- Compatibility: Features excellent compatibility with mainstream inverters, supporting CAN and RS485 communication for seamless integration.
- Real-Time Monitoring: Monitor battery status remotely through the NOVA APP & Web, and locally via the optional TBB-E4 LCD Monitor (sold separately), keeping you informed about your energy usage.
Applications:
The Power Stack 5 is ideal for a variety of residential and commercial applications. Its advanced features make it perfect for energy storage systems that require high capacity and flexibility, including solar power systems, backup power solutions, and off-grid setups.
This battery pack is designed for long-lasting performance, with a strong emphasis on safety, efficiency, and user convenience. It is securely packaged with a user manual and installation accessories.
Battery Specifications:
- Nominal Voltage: 48V
- Operating Voltage Range: 42 – 54.75V
- Nominal Capacity: 105Ah
- Maximum Power Output: 5.04kW
- Peak Current: 120A
- Maximum Charge and Discharge Current: 105A
- Recommended Charge and Discharge Current: 52.5A
- Self-Discharge Rate: Less than 3% per month
- Cycle Life: 6,000 cycles (at 90% Depth of Discharge and 70% State of Health) at 25°C, 0.5C
- Operating Discharge Temperature: Ranges from -20°C to +55°C
- Operating Charge Temperature: Ranges from 0°C to +55°C
- Altitude Limit: Less than 2,000 meters
- Humidity Tolerance: 95% (without condensation)
- Protection Rating: IP65
- Dimensions: 484 x 725.5 x 195 mm
- Weight: 54.0 kg
