- Description
The LFP48-100W is a powerful and adaptable 100Ah 48V Lithium Iron Phosphate (LiFePO4) battery module designed for wall-mounted energy storage solutions. With its robust capacity and scalable design, it is ideal for a variety of applications, including renewable energy systems and backup power.
Equipped with an advanced Battery Management System (BMS), this battery actively manages the charging and discharging processes while monitoring voltage, current, and temperature. The BMS ensures optimal performance, longevity, and protection against issues such as overcharging, over-discharging, and extreme temperatures.
Key Benefits of the LFP48-100W:
High Scalability: Can be connected in parallel with up to 15 units, allowing for significant energy storage expansion to meet large-scale demands.
Extended Lifecycle: Offers up to 6,000 cycles at 95% depth of discharge, providing years of reliable performance.
Advanced Safety Features: Comprehensive BMS protection against:
- Overcharging
- Over-discharging
- Over-current
- High or low temperatures
- Short circuits
Wall-Mounted Design: Comes with a mounting bracket for secure wall installation, saving space and ensuring easy access.
Optimized Performance: Intelligent features such as cell balancing, current limiting, and capacity retention ensure efficient operation.
Soft Start Functionality: Minimizes high current impact during inverter startups, extending system life.
Smart Monitoring: Connect via Wi-Fi or Bluetooth to a mobile app for monitoring and configuration, including communication protocol selection (CAN and RS485) for compatibility with leading inverter brands.
Deep Cycle Applications
The LFP48-100W is perfect for a range of demanding applications requiring robust and scalable energy storage, including:
- Renewable Energy Systems: Supports solar and wind energy storage for residential, commercial, or industrial use.
- Backup Power: Delivers reliable energy for UPS systems and critical equipment during outages.
- Telecommunications: Provides dependable power for telecom and networking infrastructure.
- Industrial and Commercial Use: Powers lighting systems, automation, and other energy-intensive operations.
Longevity and Maintenance
Designed for a lifespan of over 10 years, this battery minimizes maintenance requirements while offering cost-effective, long-term energy storage.
Packaging
The battery is securely packaged for safe transportation and includes wall mounting brackets, battery terminal covers, screws, and a user manual for easy installation and operation.
Battery Specifications:
- Nominal Voltage: 51.2V
- Nominal Capacity: 100Ah
- Depth of Discharge: 95%
- Life Cycle: 6,000 cycles at 95% Depth of Discharge (DoD) at 25°C
- Recommended Charge Voltage: 58.4V
- Maximum Charge Current: 100A
- Recommended Charge Current: 50A
- Maximum Discharge Current: 100A
- Recommended Discharge Current: 50A
- Operating Charge Temperature: From 0°C to +45°C
- Operating Discharge Temperature: From -10°C to +45°C
- Humidity Range: 5-95% Relative Humidity (RH)
- Altitude Limit: Less than 4,000 meters
- Communication Ports: RS485/RS232/CAN

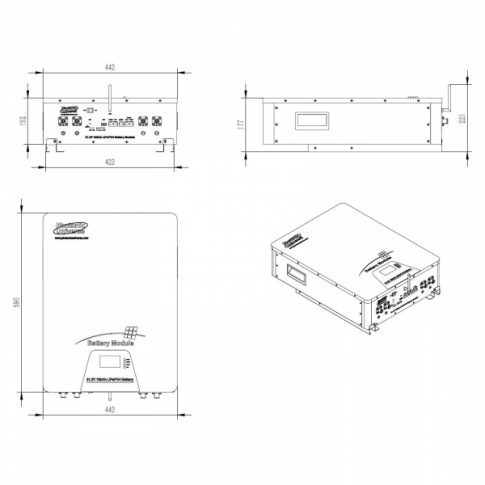

- Dimensions: 590 x 442 x 177 mm
- Weight: 45 kg
